Compact Air Cylinders
Mini Free Mount Cylinder CUJ/CDUJ
 | ・Space saving: Total length reduced by 64% and capacity by 70% (Compared to the CU series) ・With auto switch (CDUJ series: CDUJ) |
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | CUJ | Double acting single rod | 4，6，8，10，12，16，20 |
| Standard | CUJ | Single acting (Spring return) | 4，6，8，10，12，16，20 |
■Minimum body
Full length is shortened by up to approx. 20%.
Volume is reduced by up to approx. 45%.

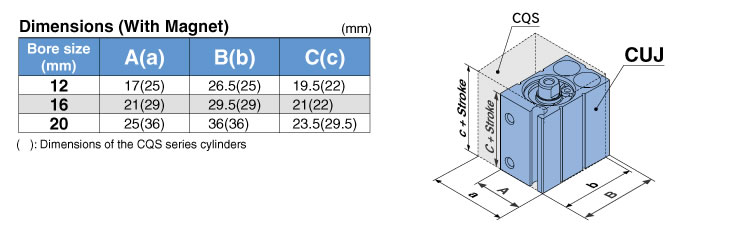

(Compared with the CQS series cylinders, double acting, with magnet)
Full length is shortened by up to approx. 64%.
Volume is reduced by up to approx. 70%.

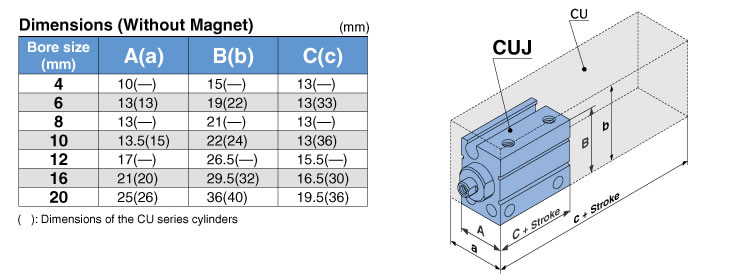

(Compared with the CU series cylinders, double acting, without magnet)
■Concentrates wiring and piping on one side

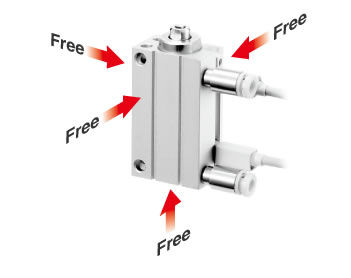

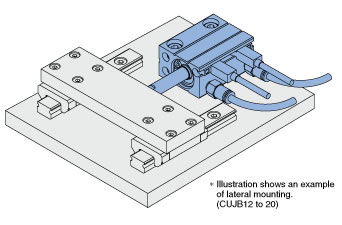

Allows more efficient installation, since four directions can be used freely.

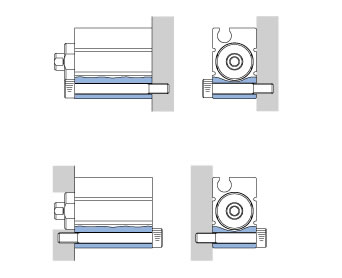

■Allows installation from four directions（ø4 to ø10）

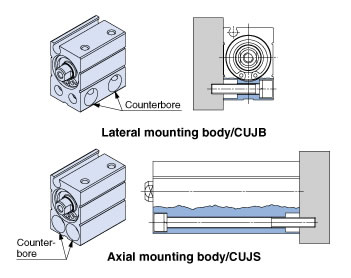

■With counterbore for mounting (ø12 to ø20)
2 kinds of bodies are available.
There is no protrusion for a mounting bolt.

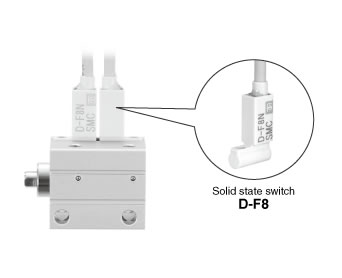

■Two auto switches can be installed even for a 4 mm stroke.*
* ø12 to ø20 are available starting from a 5 mm stroke.
■Easy seal replacement

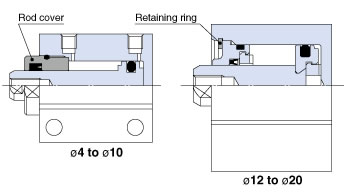

Seals can be replaced easily by just removing the rod cover (ø4 to ø10) or retaining ring (ø12 to ø20).

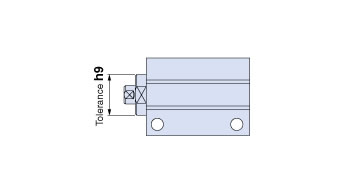

■With boss (h9) (ø4～ø10)
Centering can be done easily.
■Clean room compliant
Clean Series (except ø4)
Clean Series (except ø4)

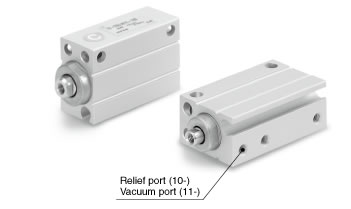

Series 10-CUJ/11-CUJ

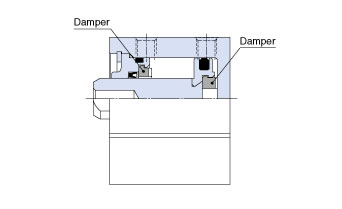

■Standard equipment with damper (ø12 to ø20)
■RoHS compliant
■Applications

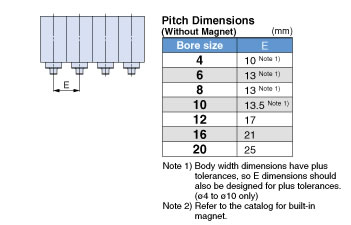

Short pitch mounting is possible.
■Lowering the center of gravity when using an external guide
Mini Free Mount Cylinder CUJ/CDUJ
